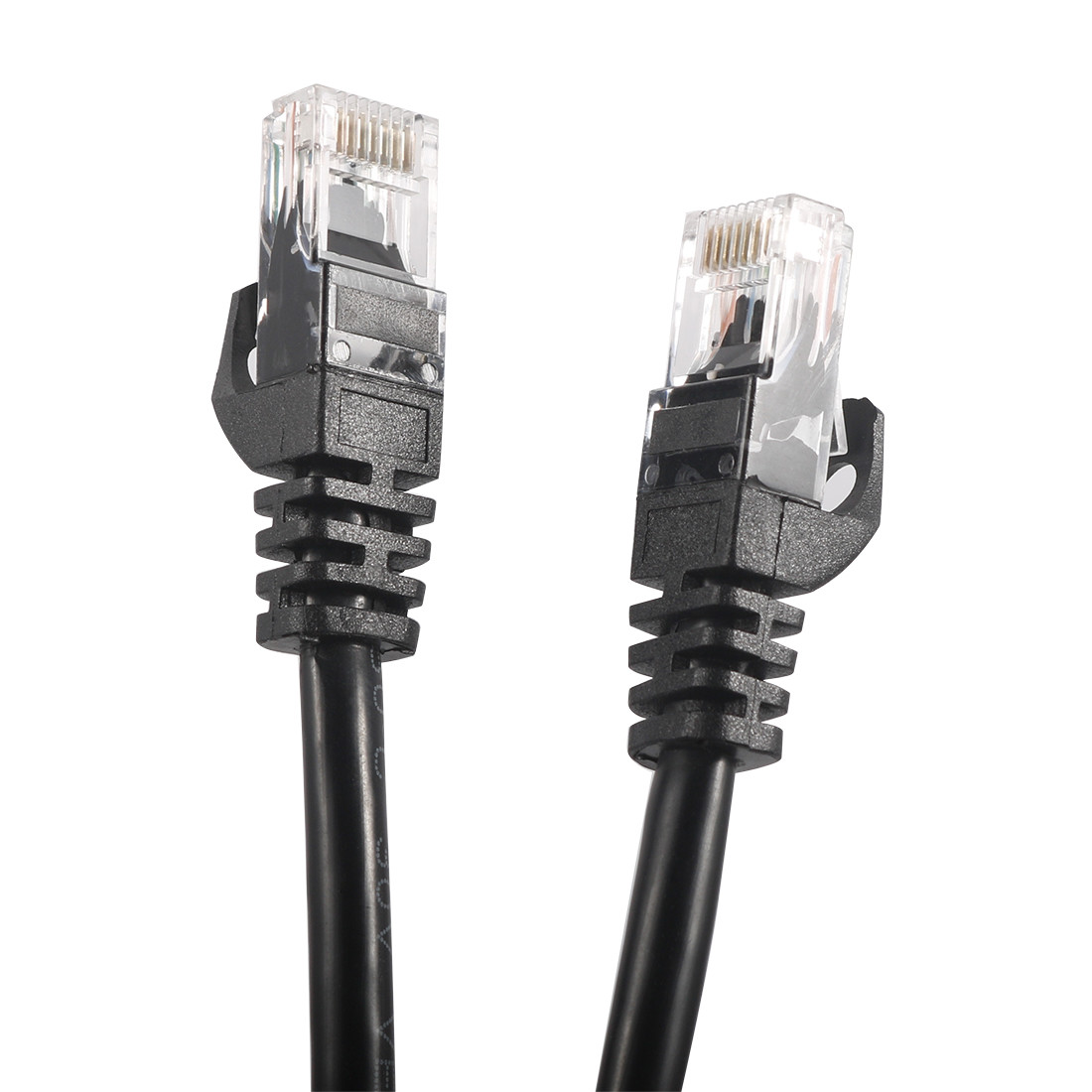

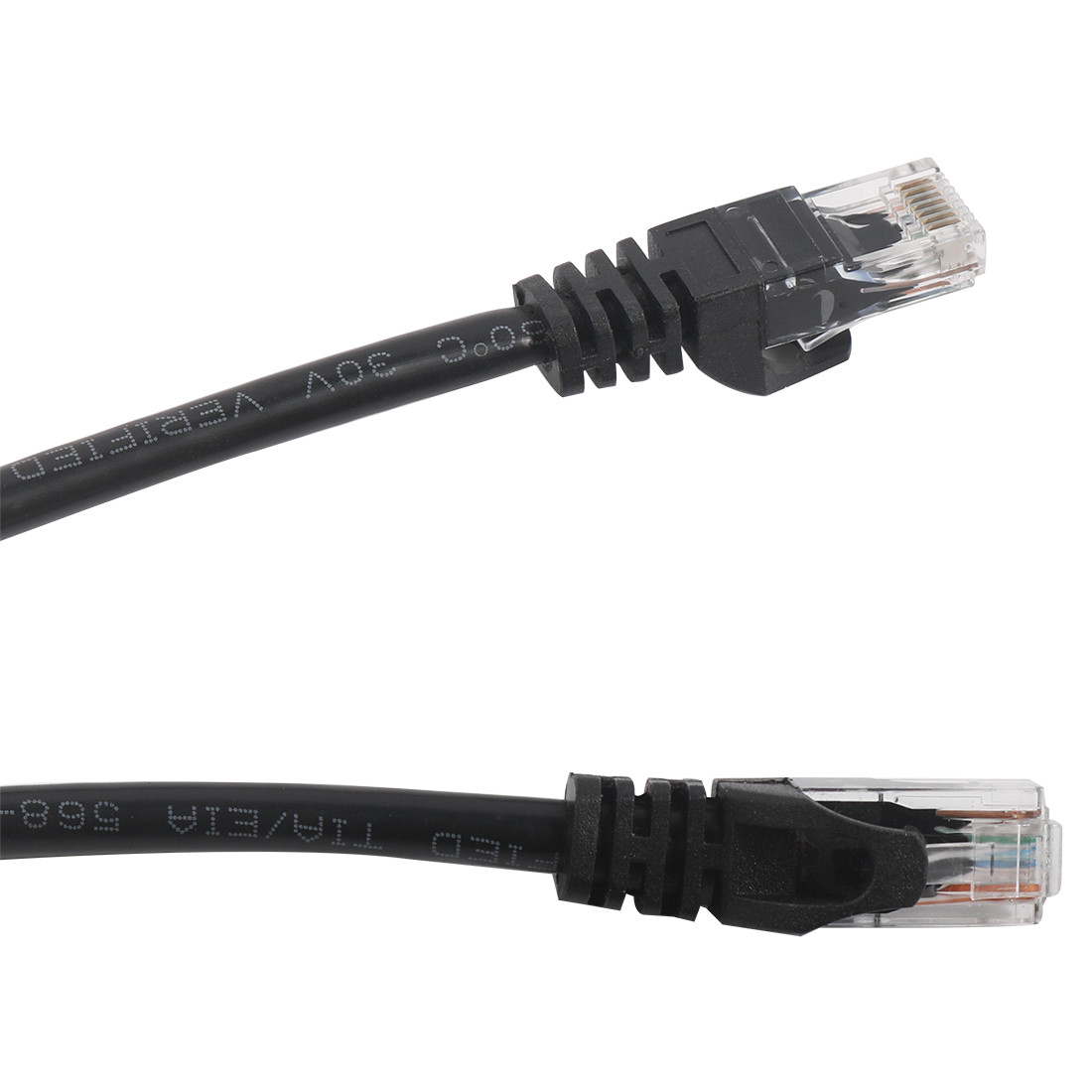

RJ45 To RJ45 3m Utp Cat6 Cable 4Pair 26AWG Stranded Cat6 Network Ethernet Cable

Brand Name : SLR

Model Number : C6-UTP-BL-R1

Certification : CE,ROHS

Place of Origin : GUANGDONG,CHINA

MOQ : 15000 Meter Total, no Matter Patch Cord length

Price : NEGOTIABLE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS per Day

Delivery Time : 1-2week after payment( based on quantity)

Packaging Details : 1PCS /BAG

Product Name : UTP Cat6 patch lead

Type : Round Category 6 Cable

Conductor : Pure Copper

Wire Guage : 26 awg

Core Diameter : 7*0.16 mm 4Pair

Jacket Material : ROHS PVC

Connector : RJ45 Male

Color : Red, Black, White, Yellow, Blue, Orange, Green, ...OEM

Transmission Rate : 1 Gbps

Transmission Bandwidth : 250MHZ

Contact Now

3m RJ45 to RJ45 UTP CAT6 Copper Patch Cord 4Pair 26AWG Stranded Cat.6 network ethernet cable

Category 6 is a good cable for all new installations , CAT6 Supports 250MHZ and transsmission speed up to 1 Gigabit, super good for Gigabit Ethernet . It consit of 4pair pure copper twist wires and RJ45 plug is on both side .

Typical Application:
Wall and Multi-User Outlets
Patch Panel and CPs
Suitable for connection to servers, blade servers hubs, and switches, etc
Ethernet 10BASE-T, 100BASE-T (Fast.Ethernet), 1000BASE-T (Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)
155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM
Token Ring 4/16

RJ45 To RJ45 3m Utp Cat6 Cable 4Pair 26AWG Stranded Cat6 Network Ethernet Cable

Brief Information
Cable Type	CAT6 4-Pair UTP
Connector Type	Gold-Plated RJ45(8P8C)
Cable Performance	Up to 250 MHz
Conductor Gauge	26AWG
Cable Structure	Stranded

Plugs
Housing & Boots	PC resin
Shielding	Copper Alloy, Gold Plated
Contacts	50 U gold plated
Color Code	Follow TIA/EIA 568B

RJ45 To RJ45 3m Utp Cat6 Cable 4Pair 26AWG Stranded Cat6 Network Ethernet Cable

Ordering Information
Part number	Description
SL-UTP-C6-PVC-R-GY-XXM	UnShielded Twisted Pair Cable (UTP), Category 6, 4 Pairs, Stranded, Round PVC, XXM
SL-UTP-C6-LSZH-R- GY-XXM	UnShielded Twisted Pair Cable (UTP), Category 6, 4 Pairs, Stranded, Round LSZH, XXM
PS: 1: Also, available in Black (BK), Blue (BL), Green(GN), Orange (OR), Red (RD), White (WH), Yellow (YL) for bulk orders 2: XXM means length

Compare list
CATEGORY	RATE	BANDWIDTH	DISTANCE	CABLE TYPE	APPLICATION
CAT 8	40 Gbps	2000Mhz	30M	Double Shield	High Speed bandwith enviroment, Data Center
CAT 7	10 Gbps	600Mhz	100M	Double Shield	High Speed bandwith enviroment, Data Center
CAT 6A	10 Gbps	500Mhz	100M	Shield/unshield	Large enterprises, High Speed application
CAT 6	1Gbps	250Mhz	100M	Shield/unshield	Large enterprises, High Speed application
CAT 5e	100Mbps	155Mhz	100M	Shield/unshield	Small Office/Home
PS: The above data will be influenced by the routers , swithces, network providers and other equipments.

RJ45 To RJ45 3m Utp Cat6 Cable 4Pair 26AWG Stranded Cat6 Network Ethernet Cable

Q1: Is it possible to customize our brand information on the cable?
A: Yes, we can print your brand name on the cable jacket and 3KM total cable length is requested.

Q2: Can you pass FLUKE test?
A: Yes, all SL networking cable can pass Fluke channel, component and permanent link test per customers' request.

Q3: What is your MOQ of your products?
A: We only have MOQ for some special jacket color, we request 3km as the total length of the bulk cable, you may consider stock
the bulk cable with us for your urgent order production.

Q4: Are free samples available from you?
A: Yes, we are always happy to offer the free samples for all of our customers' projects provided that the total cost is under
50 US dollars.

Q5: Do you accept OEM and ODM orders?
A: Absolutely yes, we have been doing OEM services since we start in this business, and for every single label, printing, bag
and carton design, we always treat it seriously and do it nicely. Our engineers can help you with your current design and even
can open the new tooling for your specific project.
