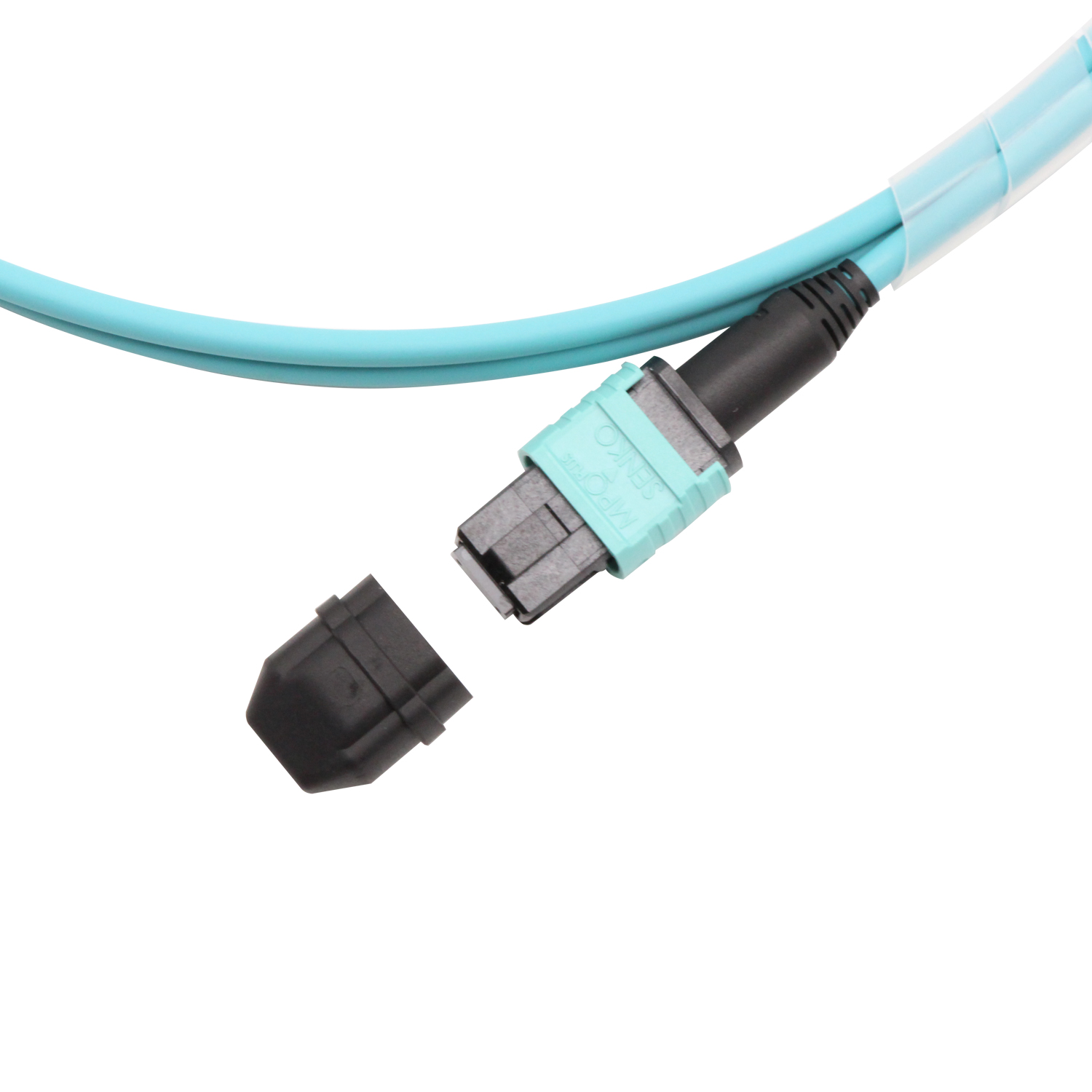

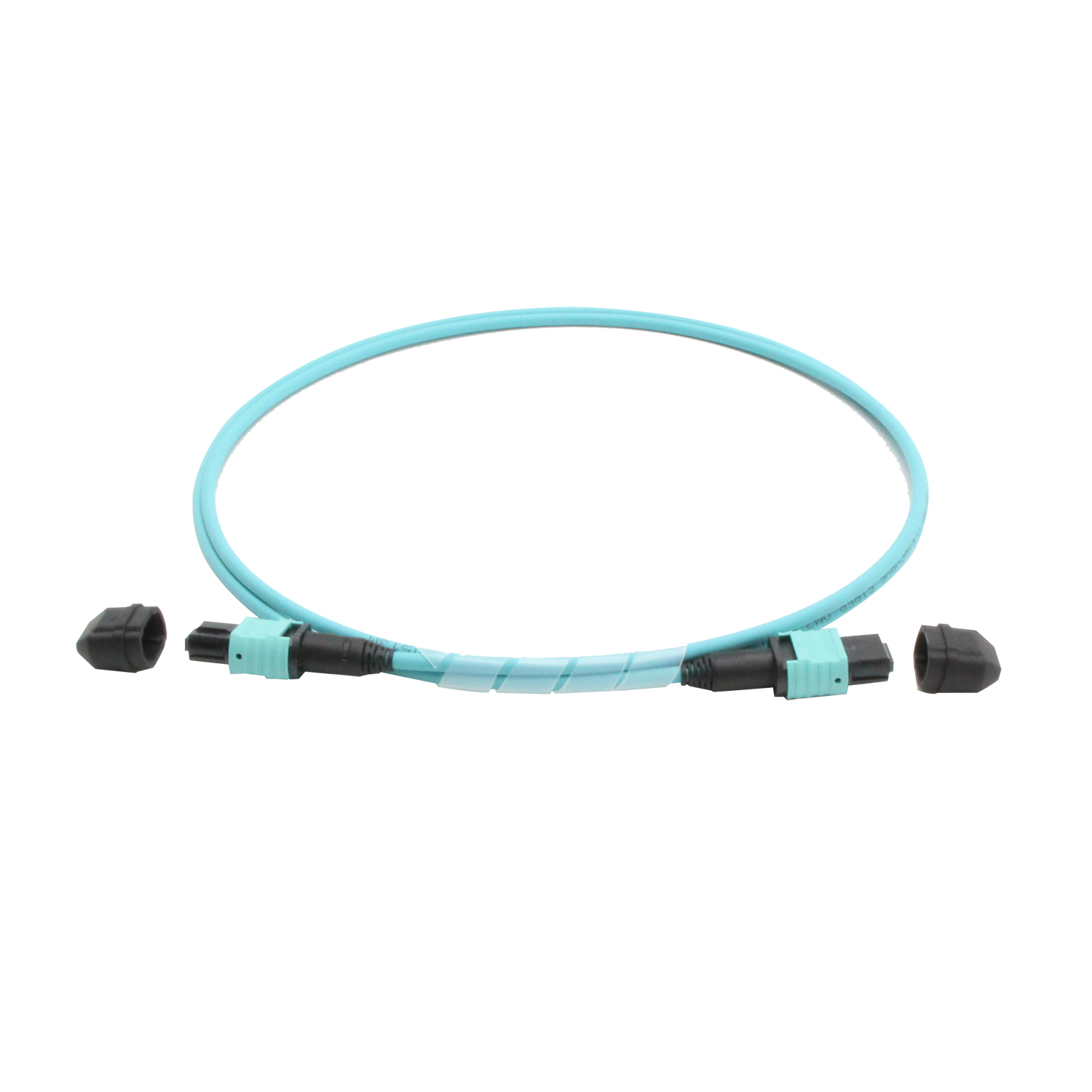

12 Fiber LSZH 10M TYPE B Mpo To Mpo Fiber Cable OM3 Fiber Patch Cord

Brand Name : SLR

Model Number : SLR-MPO-003

Certification : CE ROHS

Place of Origin : GUANGDONG CHINA

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 600000PCS/Month

Delivery Time : 1 week after payment

Packaging Details : PE bag

Model : MPO Fiber Optic Truck Cable

Connector Type : MPO - MPO. (MTP aslo ok)

Fiber Count : 12 Fiber

Cable Dia : 3mm

Cable Length : 1 Meter

Fiber type : MM OM3/OM4

Length : Customized Lengths(1m/2m/3m+1

Oem : Available

Application : Emerging 40G and 100G protocol

Contact Now

MPO Fiber Patch Cord MPO / UPC(F)- MPO / UPC(F) MM OM3 12 Fiber LSZH 10M TYPE B

MPO/MTP patch cord are designed to high density multi fibers solutions, fit for different installation environment and easy to in-stall between the trunk line, data centers and buildings. Our patch cord are 100% factory tested and can meet your special requirements. All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.

Features:

* MPO connector comply with stadards
* A quick and easy to deploy
* Lower Installaion cost and time
*High network and systems proformance

Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.EthernetNetwork
5.Audio and Data Transmission

Fiber Count	8 - 48 Fiber
Fiber Type	SM : OS2 9 / 125 um MM : OM3 / OM4 50/125 um
Connector Type	MPO ,MTP, MTP Pro

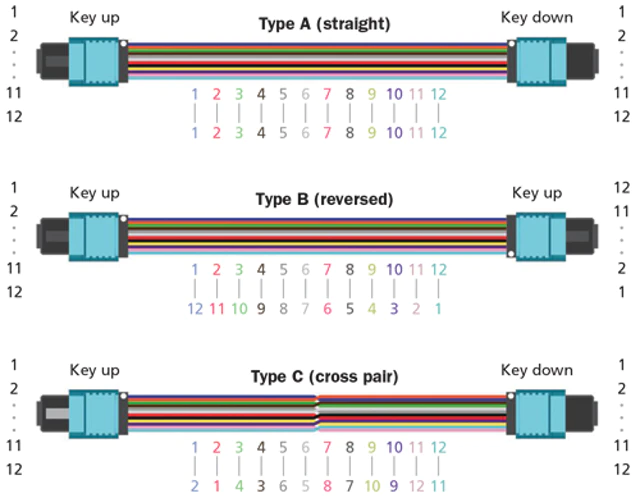

Polarity	Type A, Type B, Type C
Insertion Loss	SM: ≤0.75dB (Standards) ,≤0.35dB (Elite Low) MM:≤0.50dB (Standards) ,≤0.30dB (Elite Low)
Return Loss	SM: UPC≥50dB,APC≥60dB MM: ≥20dB
Wavelength	SM:1310/1550nm MM:850/1300nm
Transmition Length	OM4: 150m at 40/100G, 550m at 10G, OM3: 100m at 40/100G, 300m at 10G
Working Temp.	‘-40℃ to + 75 ℃
Storage Temp.	‘-40℃ to + 85 ℃
Standards	ROHS, CE Telecordia GR-1435-CORE IEC 61753-1 IEC 61754-7 IEC 61755-3-31/32 TIA 605-4 TIA 568.3 D YD/T1272.5

12 Fiber LSZH 10M TYPE B Mpo To Mpo Fiber Cable OM3 Fiber Patch Cord
