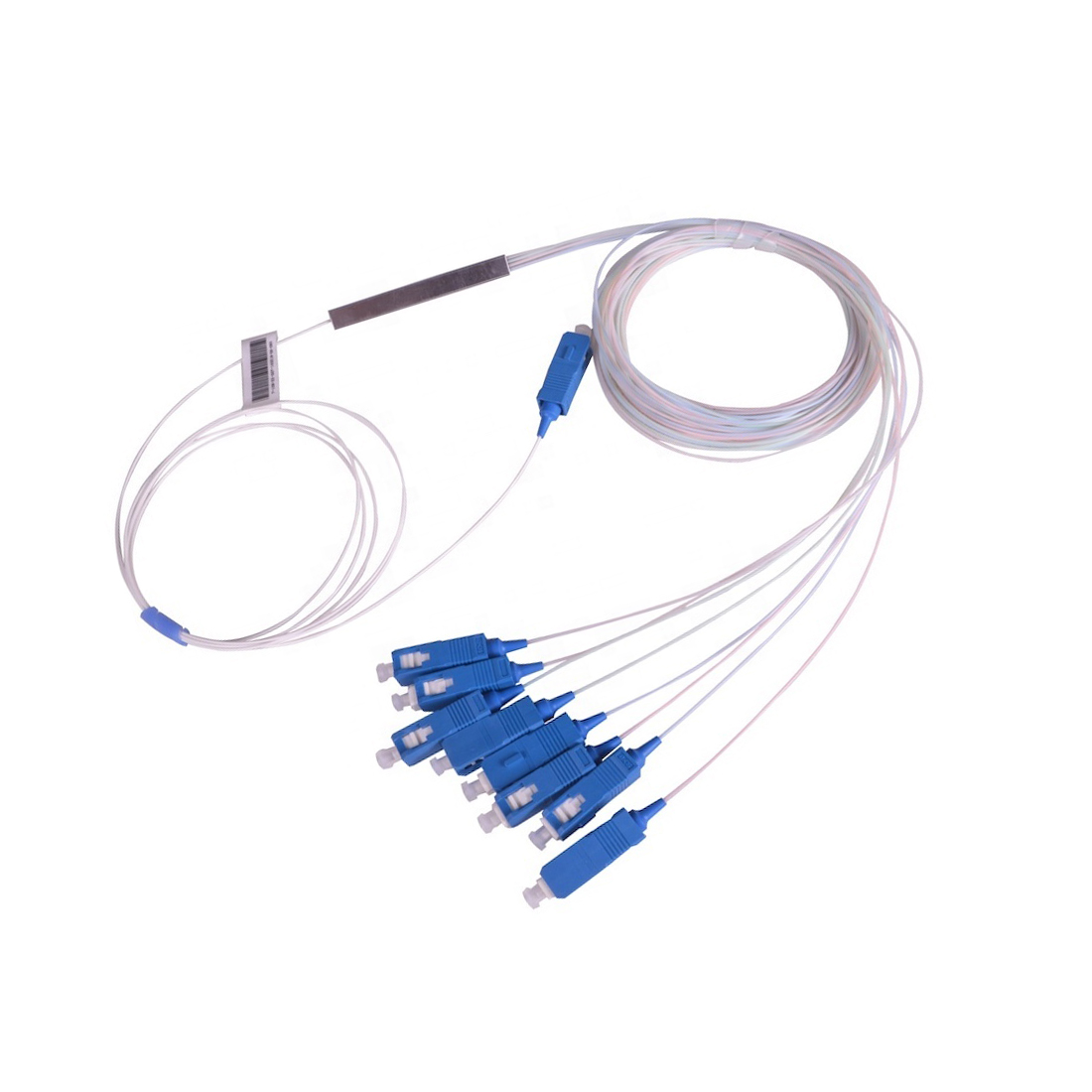

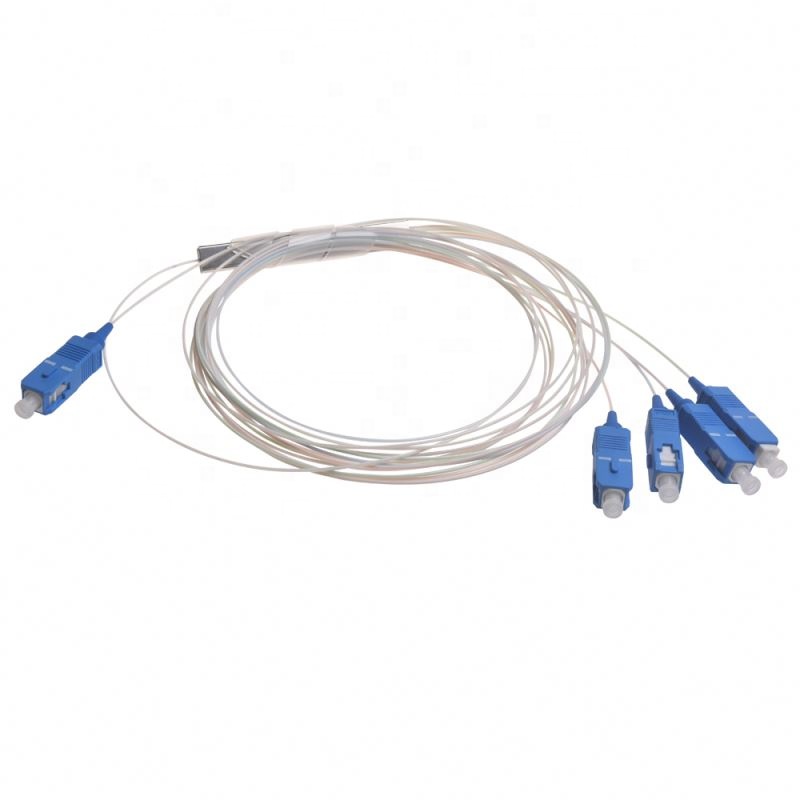

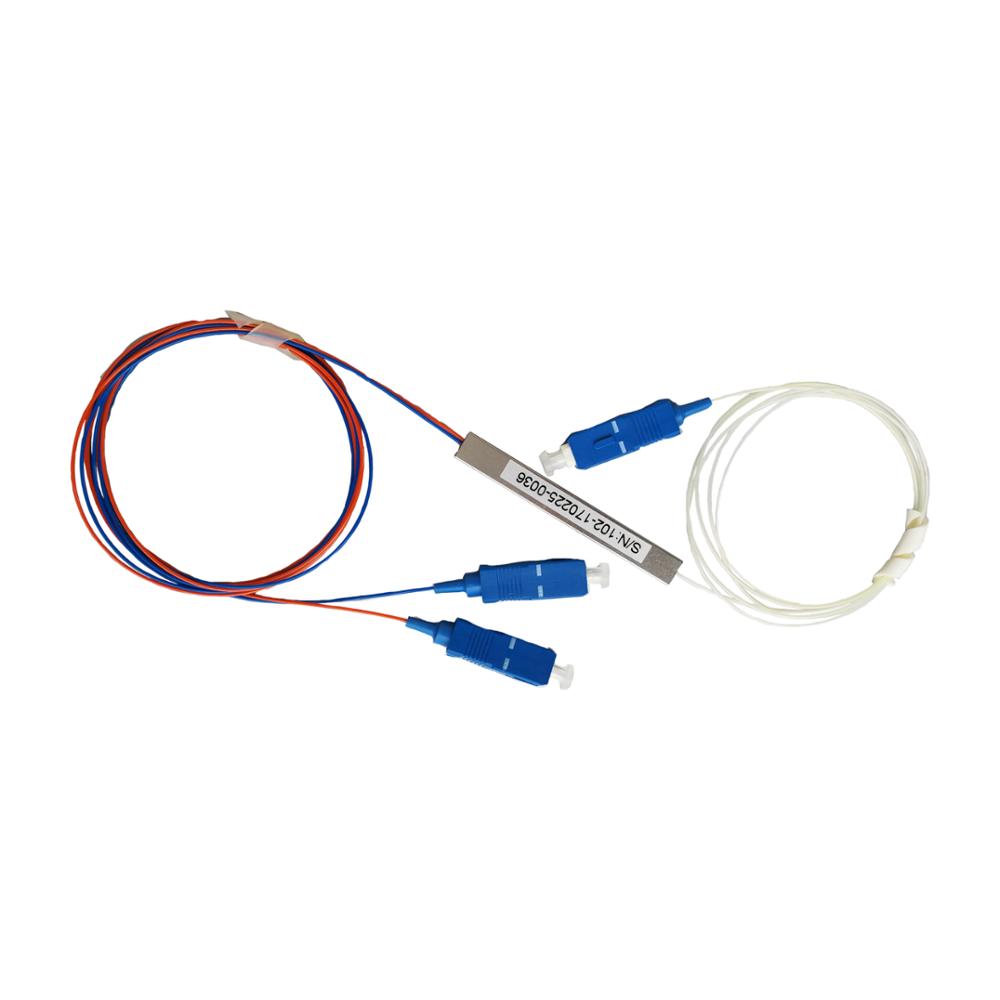

Ftth fiber optic plc splitter 1*64 1x32 1x16 1*8 1*4 steel tube plc Splitter
Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of
quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity,
It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
Bare fiber PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with
specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products
meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
We provides whole series of 1xN and 2xN splitter.
products that are tailored for specific applications.
Specifications:
PLC splitter
1.smaller size
2.lower loss of polarization and insertion
3.good directing fuction
4.stable and reliable.
Application:
• Fiber Optic CATV;
• Fiber to the home (FTTH);
• Passive Optical Networks;
• Fiber communication systems;
• Local Areal Networks (LAN)
Feature:
· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Available in dual/three wavelength operation
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm
| Parameters | Unit | Specification (P Grade) |
| Operating Wavelength (nm) | nm | 1260~1650 |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Insertion Loss with Connector (Max) | dB | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.4 |
| Insertion Loss without Connector (Max) | dB | 3.8 | 7.1 | 10.2 | 13.5 | 16.8 | 20.1 |
| Uniformity (Max) | dB | 0.6 | 0.7 | 0.8 | 1 | 1.5 | 2 |
| PDL | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥ 55 |
| Packaging Dimension (LXWXH) | mm | 60x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 |
| Parameters | Unit | Specification (P Grade) |
| Operating Wavelength (nm) | nm | 1260~1650 |
| Channel Number | | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss with Connector (Max) | dB | 4.4 | 7.7 | 10.8 | 14.1 | 17.4 | 20.6 |
| Insertion Loss without Connector (Max) | dB | 4.3 | 7.4 | 10.5 | 13.8 | 17.1 | 20.3 |
| Uniformity (Max) | dB | 0.6 | 0.7 | 0.8 | 1 | 1.5 | 2 |
| PDL | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥45(PC)；50(UPC)；60(APC) |
| Directivity | dB | ≥ 55 |
| Packaging Dimension (LXWXH) | mm | 60x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 |
| Enviroment Conditions |
| Operationg Temperature | ℃ | -40 ~ +85 |
| Operationg Temperature | ℃ | -40 ~ +85 |
| Operating Humidity | %RH | ≤ 93 |
| Storage Humidity | %RH | ≤ 93 |
| Cable Info |
| Fiber Type | G 657A |
| Pigtail Cable | 900 um |
| Connector | SC/APC |
| 2xN Splitter | Only Single Chip |
Product Tags:
|
|

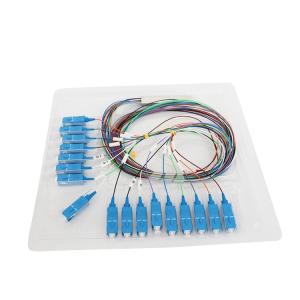

1x64 1x32 1x16 Fiber PLC Splitter Images
|
