GJYXCH 4 Core Drop Cable

Name: GJYXCH 4 Core Drop Cable
Brand: SL RELIANCE
Price: 1 USD

China GJYXCH 4 Core Drop Cable wholesale

Brand Name : SL RELIANCE

Model Number : GJYXCH

Certification : CE ROHS

Place of Origin : GUANGDONG CHINA

MOQ : 100KM

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 600KM/Day

Delivery Time : 2 weeks after payment

Packaging Details : 1KM per Drum, 2KM per Drum

Product Name : Drop Fiber Optic Cable

TYPE : 4C FTTH Drop wire

Model : GJYXCH

Fiber Count : 1 to 12 Fiber

Structure : FO, 2 Steel wire , 1.0mm steel wire，LSZH JACKET

Diameter : 5.0*2.0MM

Fiber type : G657A1/A2/G652D/G657A1/G657A2

Application : Fiber optic cable fittings

Jacket : LSZH Jacket

Strength member : Metallic wire

Cable Length : 1-2KM / Drum

Color : White/Black

Contact Now

FTTH FIG 8 STEEL WIRE MESSENGER GJYXCH 4 CORE OPTIC FIBERS DROP CABLE

Keywords: Optic fiber drop cable GJYXCH, with two parallel steel wire and 1.0mm self-supporting wire

SL Aerial Self-supporting FTTH drop cable is constructed with 1 core to 12 core single-mode fiber (G.657A1 G.657A2 ). The cable isprotected by 2 steel wire member and a LSZH outer jacket, and with an extra Steel wire messenger. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

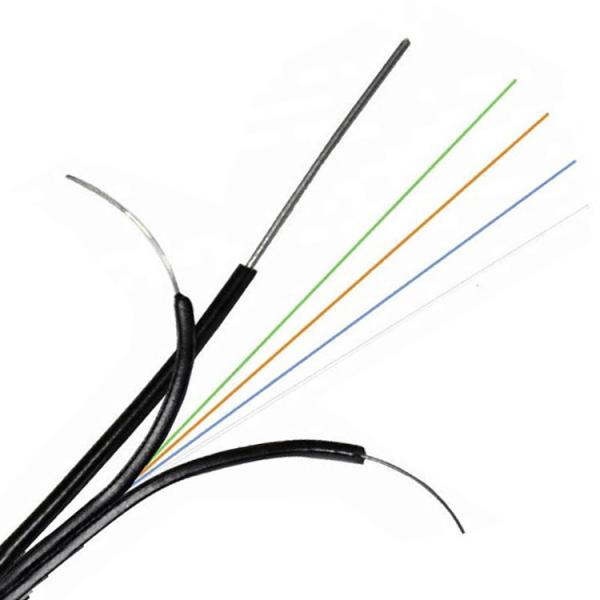

Product Construction

Fiber:
250µm colorfiber

Strength member:
2PCS Steel Wire.

Self-supported Member:Steel Wire

Outer Jacket:
UV and Flame resistant LSZH

Feature:

1.Soft and bendable, easy to deploy and maintenance.
2.Smaller diameter, Light weight, and high practicability.
3.Environmental protection- Low smoke, zero halogen and flame retardant sheath.

Application:
1:Best choice for access network as the access cable from outdoor to indoor
2: FTTH home use
3: FTTB use

Fiber Count	1F	2F	4F / 6F	8F / 12F
Self -Supporting Strength Member	Solid Steel Wire/Stranded Steel Wire
	1.0mm			1.2mm
Strength Member	FRP / KFRP /Solid Steel Wire
	0.45-0.5mm	0.45-0.5mm	0.45-0.5mm	0.45-0.5mm
Cable Diameter (mm)	(2.0±0.1)×(5.0±0.1)			(2.8±0.1)×(6.3±0.1)
Cable Weight (KG/KM)	18.5/20	19/20.5	20/21.5	34/34.5
Tensile Strength Short / Long Term (N)	200/100 for Steel wire strengh member 80/40 for KFRP wire strength member
Crush resitance Short / Long Term (N/100mm)	1000/500
Operating Temperature Range (℃)	-40~ +70℃
